Heavy-Duty Robot Gantry System with High Rigidity and Stability
Product Overview

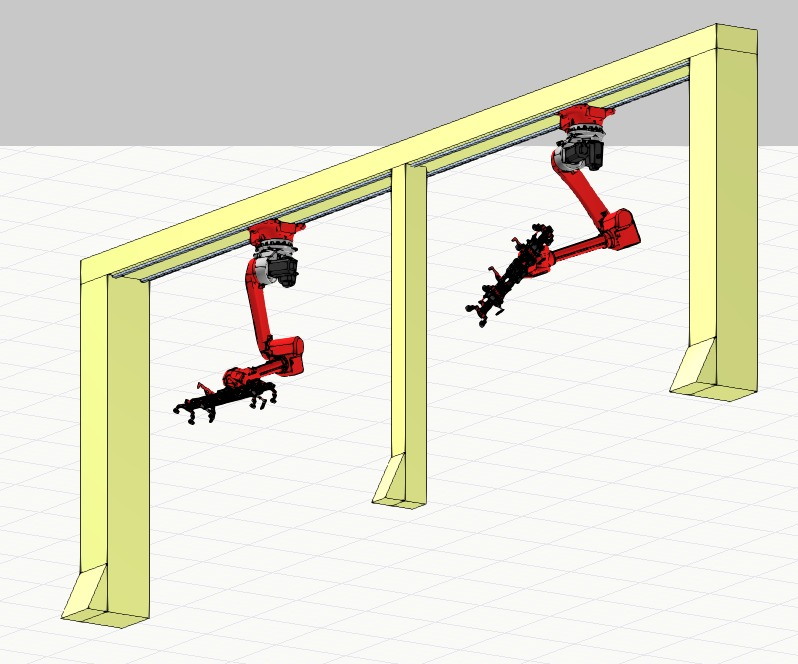

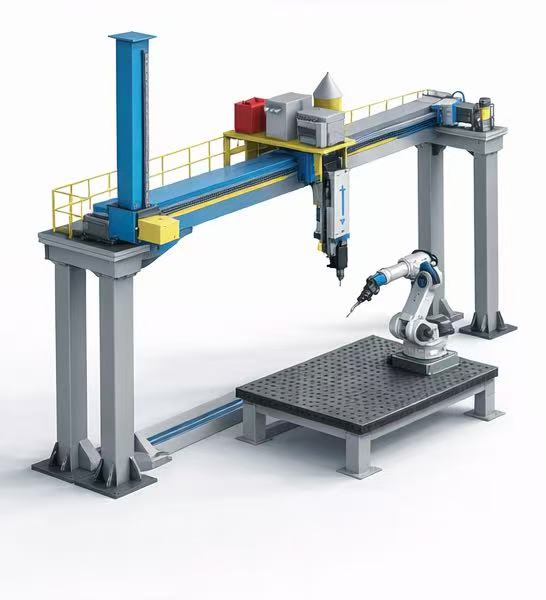

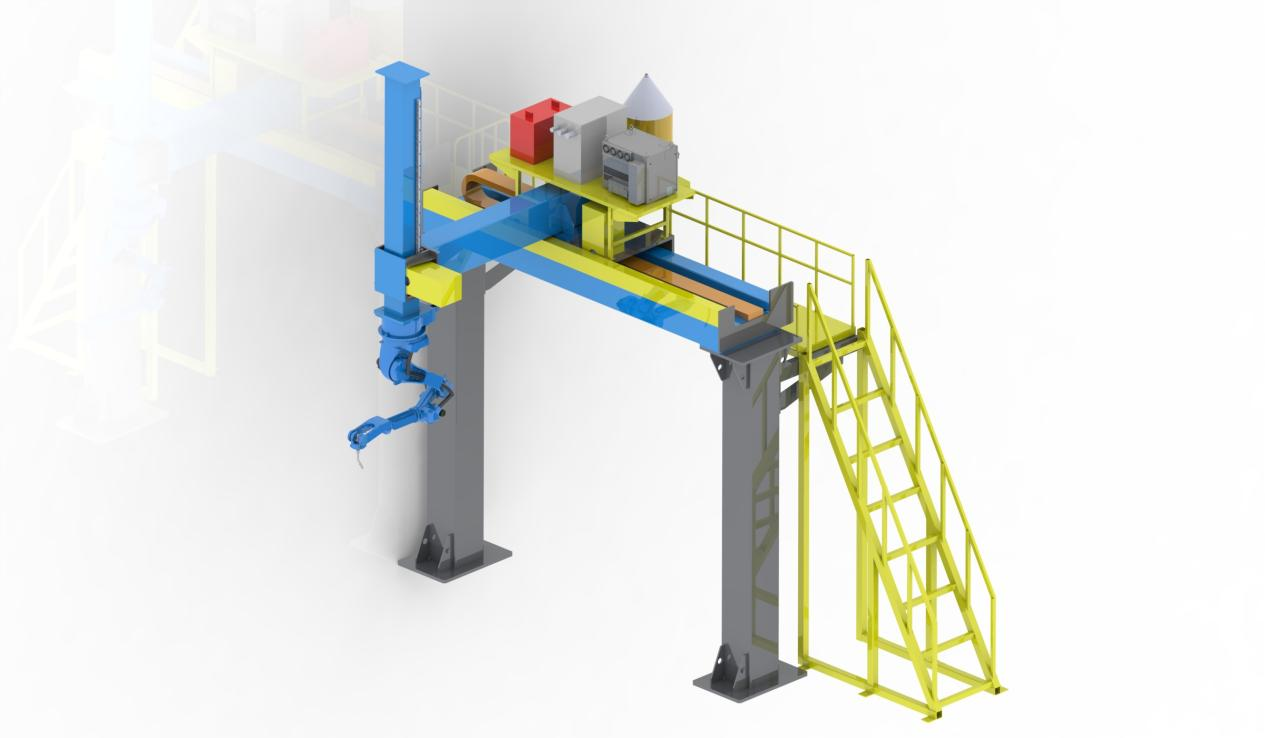

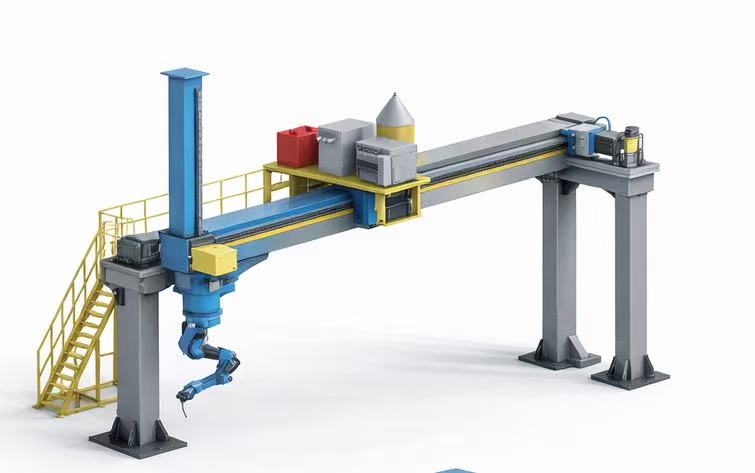

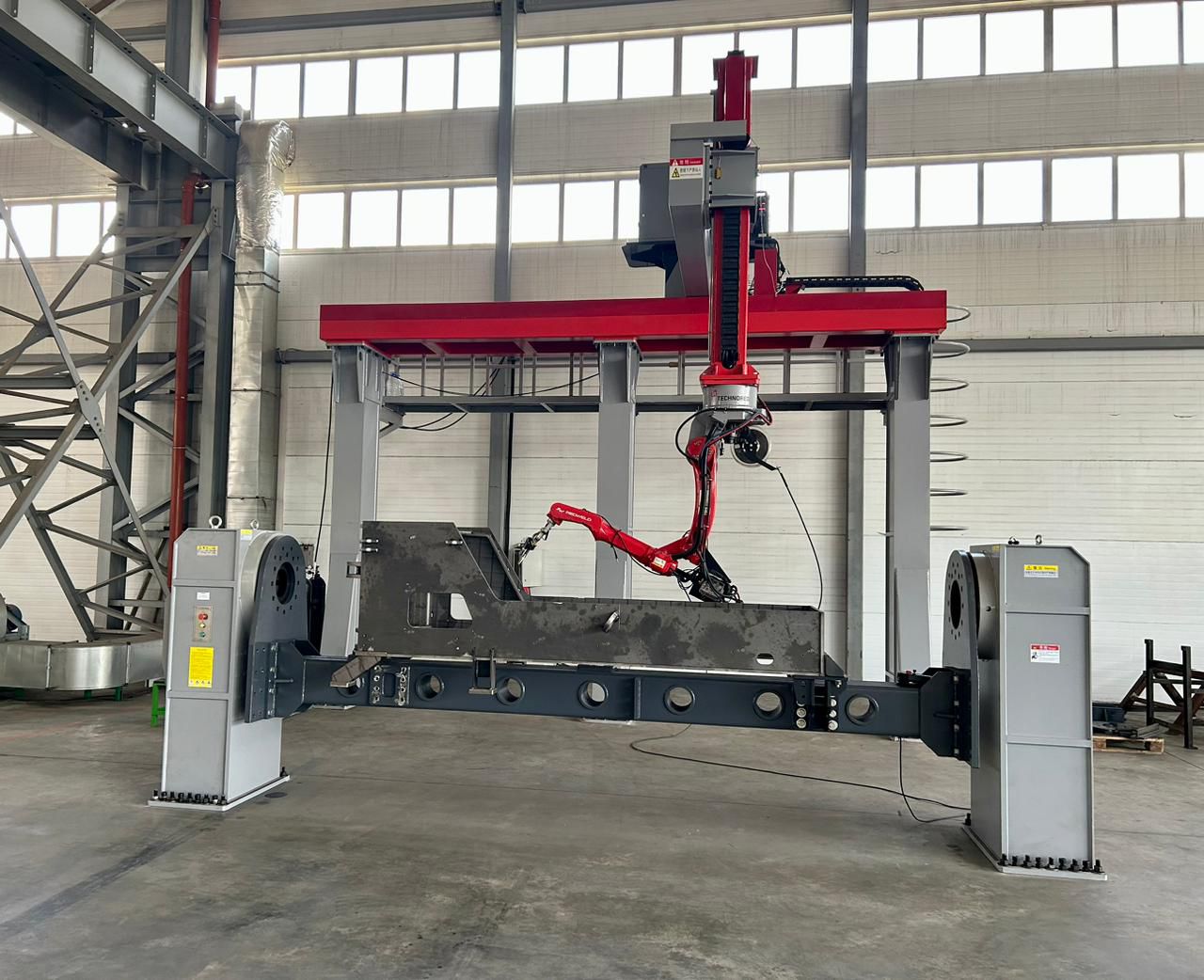

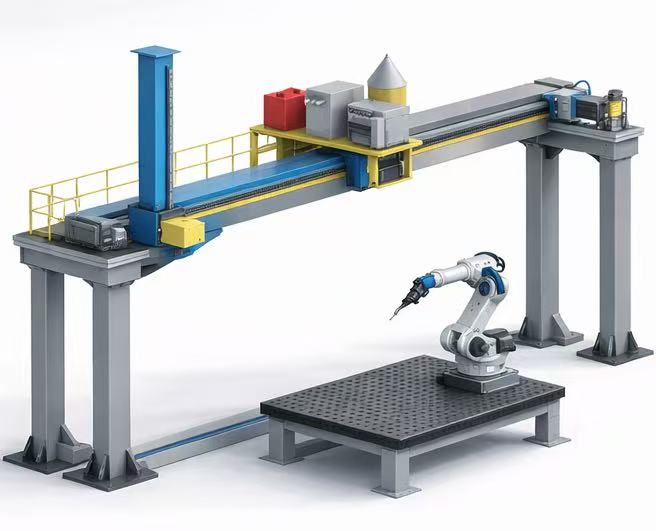

The Two-Axis Servo Travel Rail is an overhead robot gantry system specifically designed for welding automation applications. By integrating coordinated X-axis horizontal travel and Z-axis vertical lifting, this gantry system enables welding robots to operate within an expanded three-dimensional working envelope, providing flexible positioning and improved accessibility for complex welding tasks.
As a two-axis robot gantry, the system delivers high-precision linear motion through servo-driven rack-and-pinion transmission. It is widely used in automated welding lines where stable, repeatable, and multi-directional robot movement is required.
Key Features
Two-axis robot gantry travel rail with coordinated X and Z axis movement
Overhead travel structure for extended robot working range
Servo-driven gantry linear motion system for welding automation
Repeat positioning accuracy up to ±0.10 mm
Precision rack and pinion drive with helical gears
Stable motion and accurate positioning over long gantry spans
Modular gantry design supporting XY / XZ / YZ axis configurations
Automatic lubrication system for reduced maintenance
Semi-enclosed protective structure suitable for welding environments
Technical Specifications
The two-axis servo robot gantry travel rail adopts an upright, overhead installation and provides precise linear motion for welding robots and automated equipment.
| Item | Specification | ||
| Controlled Axes | X + Z (Configurable as XY / XZ / YZ) | ||
| Installation Type | Overhead / Gantry Mounted | ||
| Drive Method | Rack and Pinion Transmission | ||
| Rack Type | Precision Helical Gear Rack | ||
| Motor Type | AC Servo Motor | ||
| Gearbox | Precision Planetary Gearbox | ||
| Gear Ratio (X Axis) | i = 40 | ||
| Gear Ratio (Y Axis) | i = 20 | ||
| Gear Ratio (Z Axis) | i = 40 | ||
| Guiding System | Linear Guide Rails with Sliders | ||
| Repeat Positioning Accuracy | ±0.10 mm | ||
| Travel Speed (X Axis) | 0–10,000 mm/min | ||
| Travel Speed (Y Axis) | 0–20,000 mm/min | ||
| Travel Speed (Z Axis) | 0–10,000 mm/min | ||
| Effective Stroke (X Axis) | Total Length − 2000 mm | ||
| Effective Stroke (Y Axis) | Total Length − 1200 mm | ||
| Effective Stroke (Z Axis) | Total Length − 800 mm | ||
| Effective Mounting Area | 1000 mm × 750 mm | ||
| Cantilever Load Capacity | ≤ 350 kg | ||
| Lubrication System | Automatic Central Lubrication | ||
| Protective Structure | Semi-enclosed Sheet Metal Cover | ||
Note: Final dimensions and technical data are subject to the confirmed 3D model and jointly approved drawings.
Structural Design and Reliability
The two-axis servo gantry system features a semi-enclosed modular overhead structure composed of the gantry frame, drive units, lubrication system, and protective assemblies. High-quality steel profiles and plates are welded, heat-treated, and precision-machined to ensure long-term rigidity and structural stability under continuous operation.
The gantry drive system integrates AC servo motors and precision planetary gearboxes, transmitting motion through high-precision helical rack-and-pinion gears. Linear guide rails ensure smooth gantry travel and accurate robot positioning along both axes.
An automatic lubrication system supplies lubricant to critical motion components, reducing wear and extending service life. Powder-coated sheet-metal covers protect internal components from welding spatter, dust, and debris, ensuring reliable operation in demanding industrial environments.
Typical Applications
The Two-Axis Servo Gantry Travel Rail for Welding Automation is widely applied in:
Automated welding production lines
Overhead welding robot gantry systems
Large steel structure and construction machinery welding
Shipbuilding and heavy fabrication welding
Multi-station robotic welding cells
By integrating an overhead robot gantry system, manufacturers can significantly improve robot accessibility, expand working envelopes, and enhance overall welding automation efficiency.
Why Choose This Two-Axis Robot Gantry System?
Clear gantry / overhead system architecture
Designed specifically for welding automation equipment
Two-axis servo-driven gantry motion with high precision
Stable and repeatable performance over long spans
Modular structure for customized layouts and future expansion
Reduced maintenance with integrated automatic lubrication
Proven reliability in industrial welding environments
Conclusion
The Two-Axis Servo Travel Rail – High Precision Motion System for Welding Automation is a robust and reliable robot gantry system that delivers precise linear motion for modern automated welding applications. Its overhead two-axis design, servo-driven transmission, and rigid mechanical structure enable welding robots to operate efficiently, accurately, and consistently across large working areas.
Contact us today to discuss your welding automation requirements and find the right robot travel rail solution for your application.
