Robot Slider – High-Precision Motion Track for Industrial Welding Automation
Robot Slider – High Precision Motion Control for Automated Production Lines
1. Overview

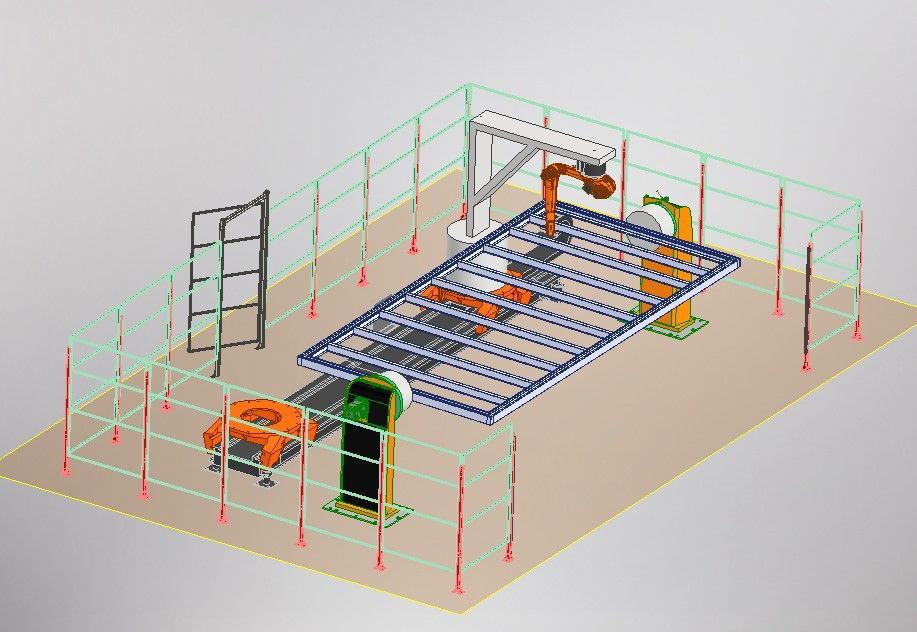

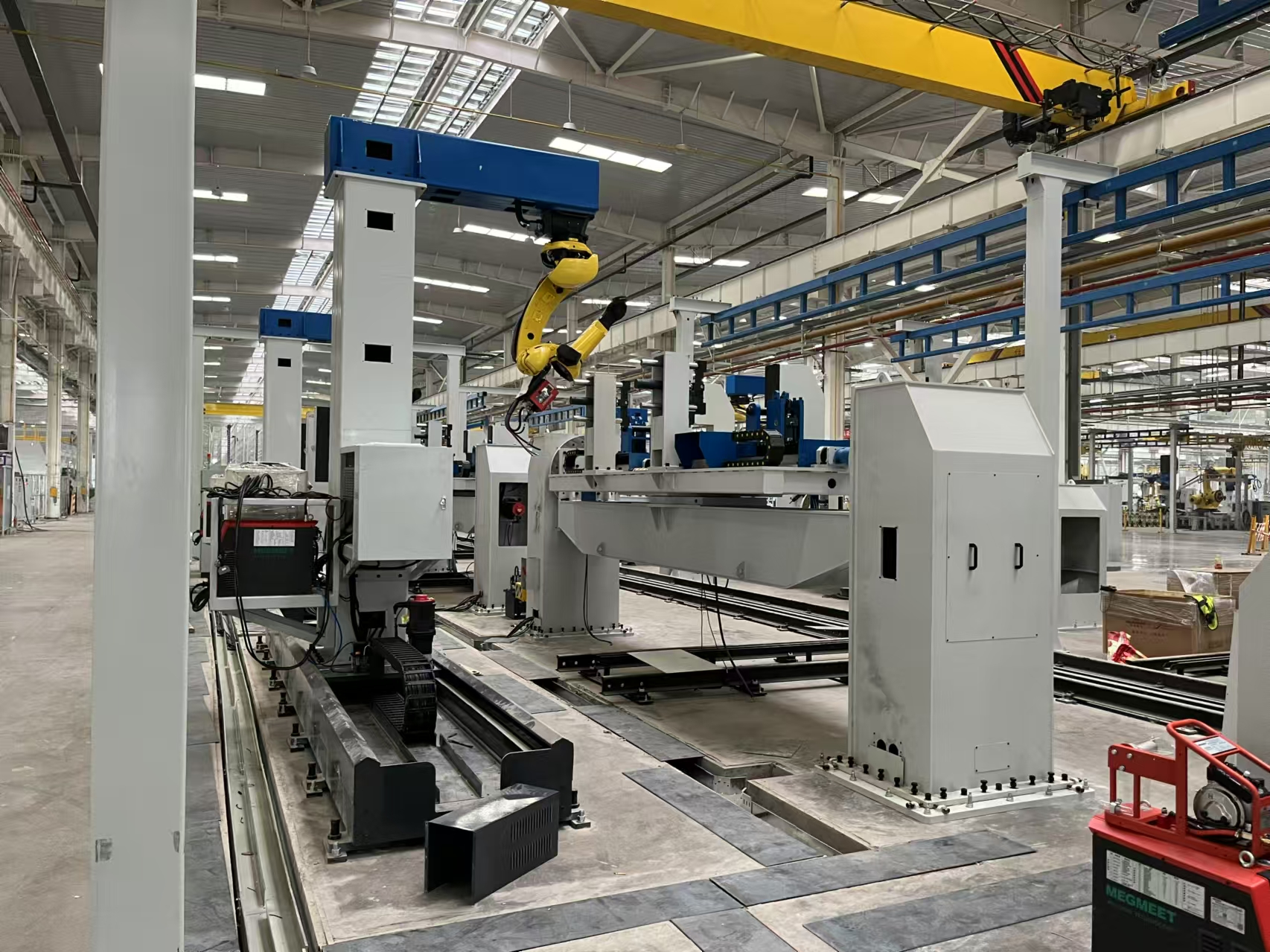

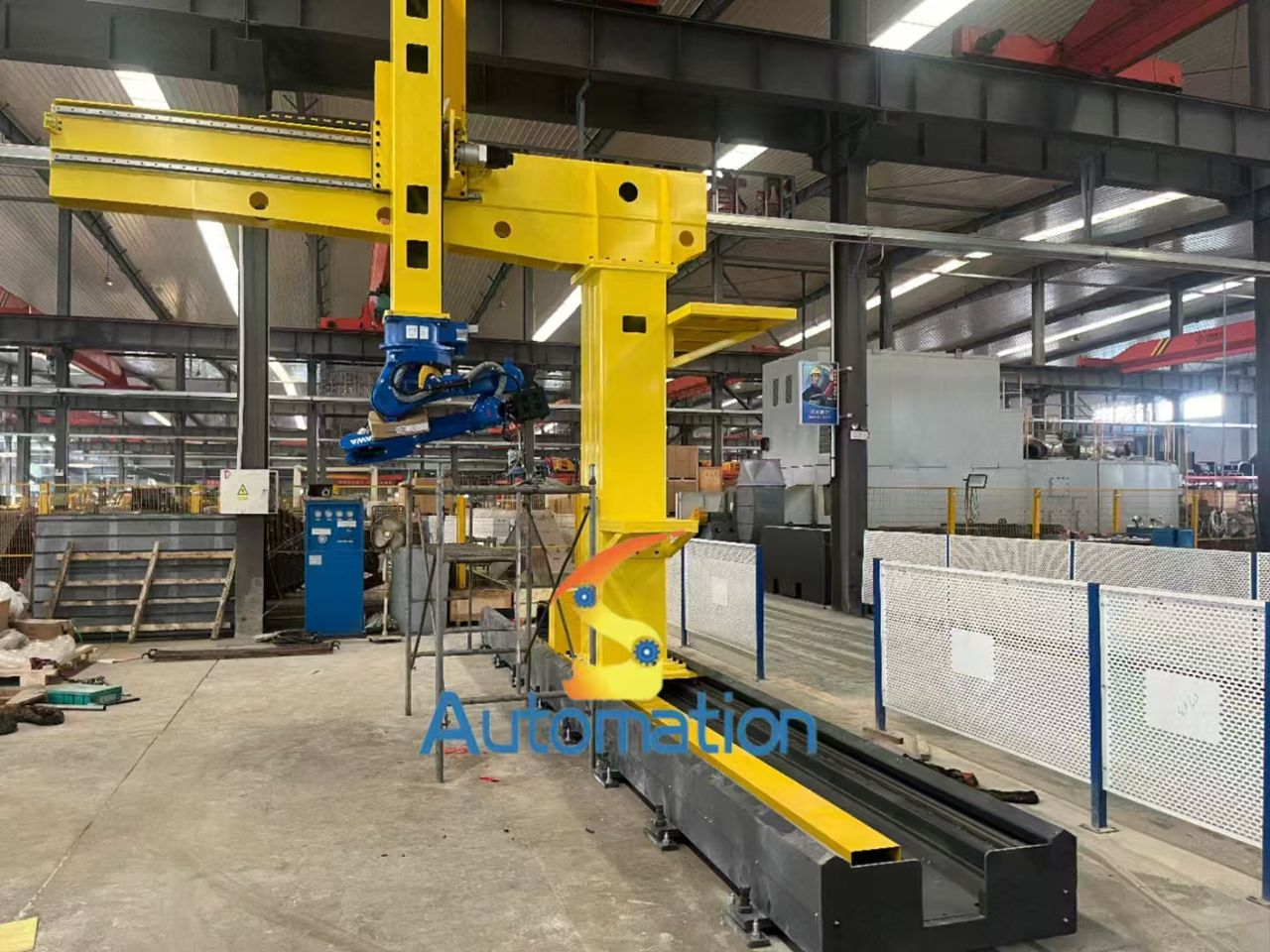

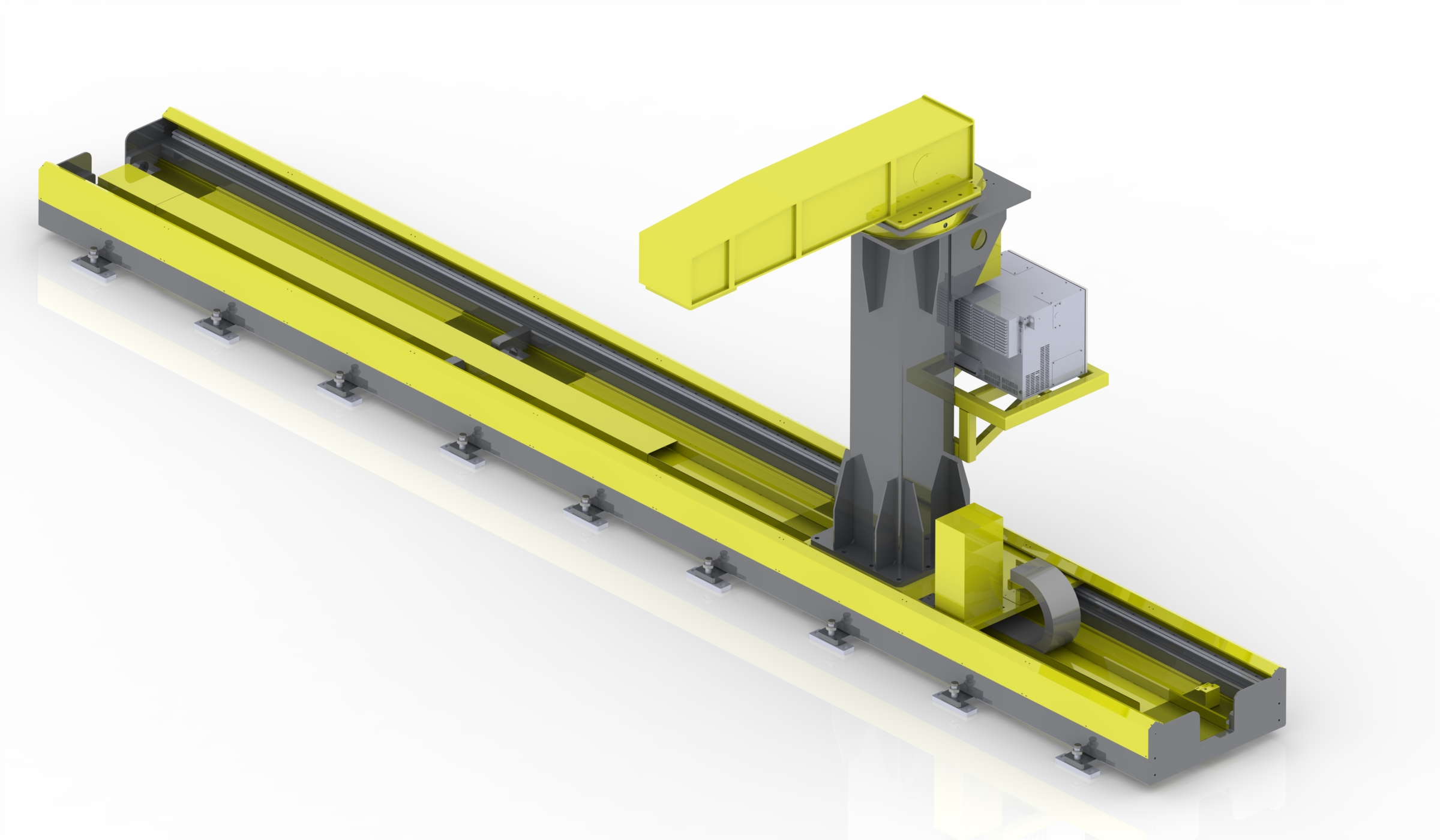

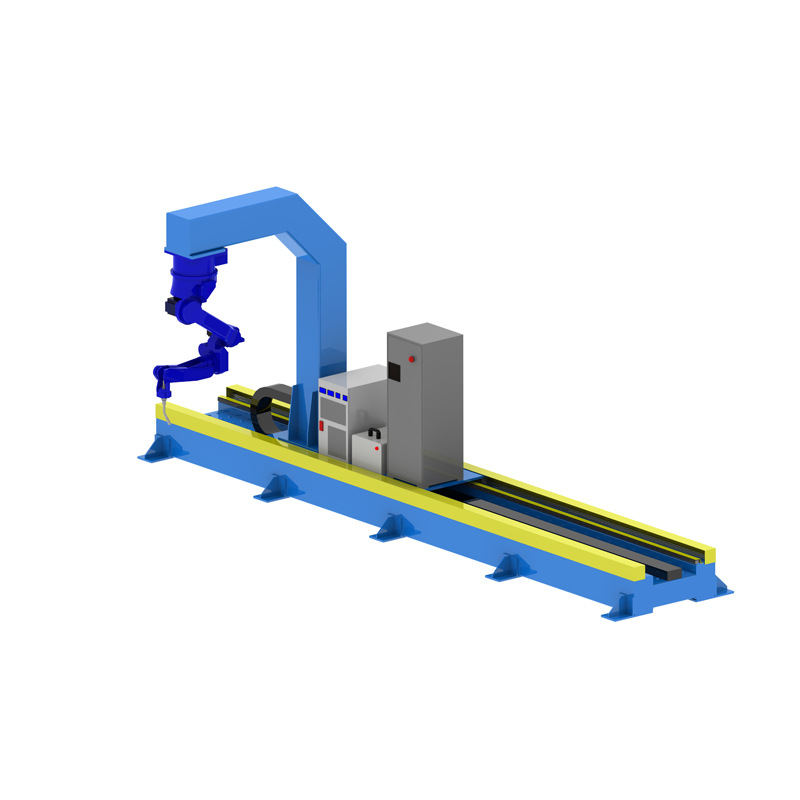

As a core component of industrial robot linear motion systems, the Robot Slider (Model: AUT-DW-XY-Z/D-M-XXX) is engineered for high-precision, high-stability linear positioning in automated welding scenarios. Designed to complement articulated robots, gantry systems, and collaborative robots, this two-axis linear rail breaks through the limitations of fixed robot workspaces, enabling extended-reach operations while maintaining reliable motion accuracy. Equipped with a servo-driven gear-rack transmission mechanism and intelligent control module, it integrates seamlessly with mainstream robot controllers (e.g., Yaskawa YRC1000, FANUC R-30iB) and serves as a critical solution for large-workpiece welding, heavy-load handling, and precision assembly tasks in heavy industry.
2. Technical Specifications
| Item | Specification |
| Product name | Two-axis linear rail |
| Main uses | Welding |
| Model | AUT-DW-XY-Z/D-M-XXX |
| Standard section length | X axis: 30m (4M/section, can be freely combined) |
| Control the number of axes | Two axes (X axis & Y axis) |
| Installation form | Floor-style/formal attire |
| Transmission mode | Gear and rack drive |
| Guiding method | Linear guide and sliding seat |
| Lubrication method | Automatic lubrication |
| Lubricating oil | 46# guide rail oil |
| Gearbox | Precision planetary reducer |
| Reduction gear ratio | X axis=20; Y axis=10 |
| Acceleration | X axis: 10mm/s²; Y axis: 10mm/s² (when t≤1S) |
| Repetitive positioning accuracy | X axis: ≤0.5mm/15m; Y axis: ≤0.1mm/15m |
| Movement speed | X axis: 0-3000mm/min; Y axis: 0-6000mm/min |
| Effective Travel | X axis: Total length minus 1600mm; Y axis: Total length minus 1000mm |
| Effective installation size of slide | 500mm(W)×500mm(L) |
| Cantilever load | Load: 500kg |
| External dimensions | Length: According to X-axis travel; Height: According to the height of the column |
3. Key Advantages

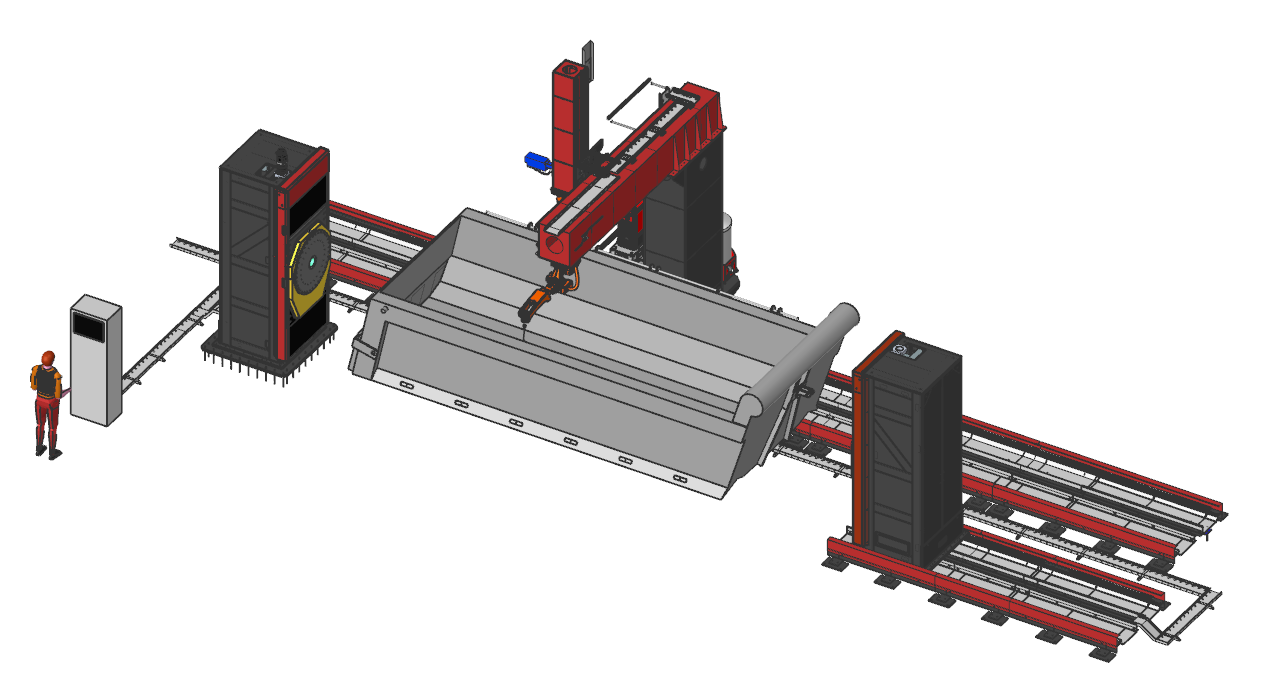

3.1 Extended Reach for Large Welding Workpieces
With a 30m (X-axis) standard travel length (freely combinable), the slider covers entire weld areas of large structures (e.g., ship hulls, crane booms) without frequent workpiece repositioning—eliminating the range constraints of fixed robot setups in large-scale welding applications.
3.2 Heavy-Duty Stability for Continuous Welding
The 500kg cantilever load and reinforced structure ensure stable operation during high-load, 24/7 continuous welding. Compatible with high-power welders, it handles thick-plate welding tasks that lightweight sliders cannot support, maintaining consistent performance without deformation.
3.3 Precise Positioning for Weld Seam Consistency
The gear-rack transmission and linear guide combination deliver ≤0.5mm/15m (X-axis) and ≤0.1mm/15m (Y-axis) repetitive positioning accuracy, avoiding cumulative errors in large workpiece welding. This ensures uniform weld seam quality across the entire production process.
3.4 Flexible Integration for Workshop Layouts
Supporting floor-mounted installation (and adaptable to irregular spaces), the slider is fully compatible with mainstream industrial robots and production line control systems via standard communication protocols. Its modular section design allows on-site length adjustment, reducing integration time by 40% compared to fixed linear systems.
4. Target Applications
Shipbuilding: Hull sections, deck structures, marine equipment welding
Heavy Machinery: Excavator arms, crane booms, machine base welding
Steel Structures: Bridge trusses, factory frames, high-speed rail support welding
Large Automotive Parts: Truck chassis, bus frame welding
5. Why Choose Us
Customizable Solutions: Tailor X/Y-axis travel length and load capacity to match your specific welding needs.
100% Quality Assurance: All sliders undergo dynamic performance testing (per industrial standards) before delivery.
On-Site Technical Support: Provide installation guidance, commissioning, and operator training to minimize downtime.
Cost-Effective: Competitive pricing with VAT invoices, optimized design to reduce overall project investment.
6. Call to Action
Ready to upgrade your large-workpiece welding efficiency and quality? Contact us today for a free on-site assessment and customized solution!
