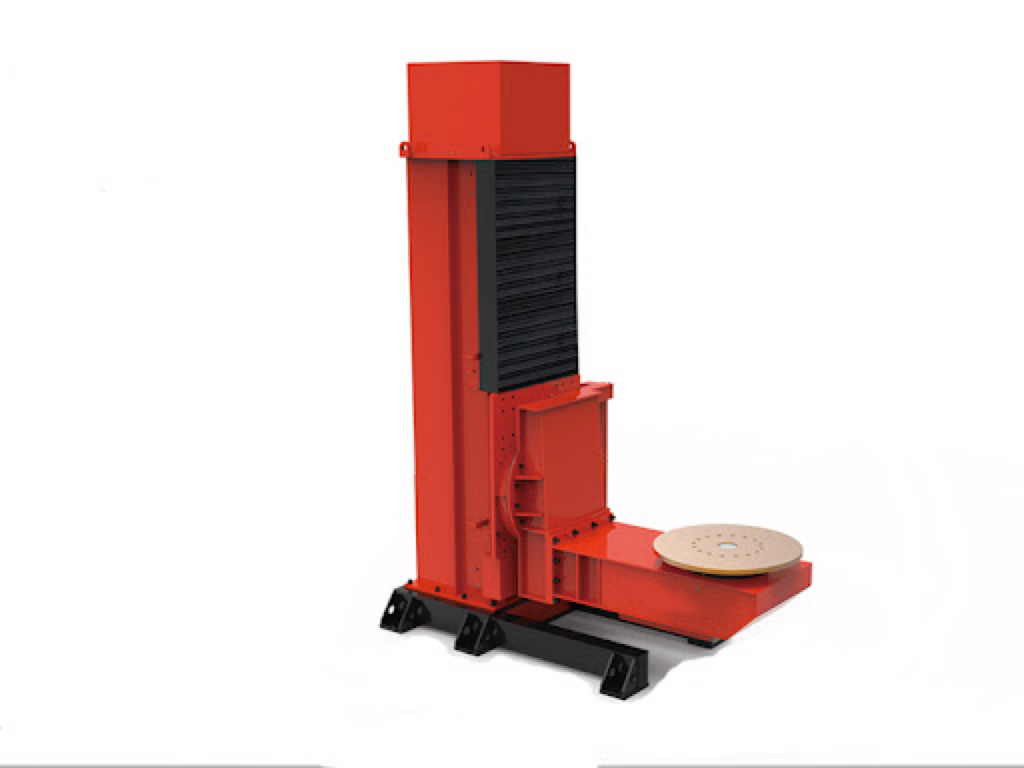

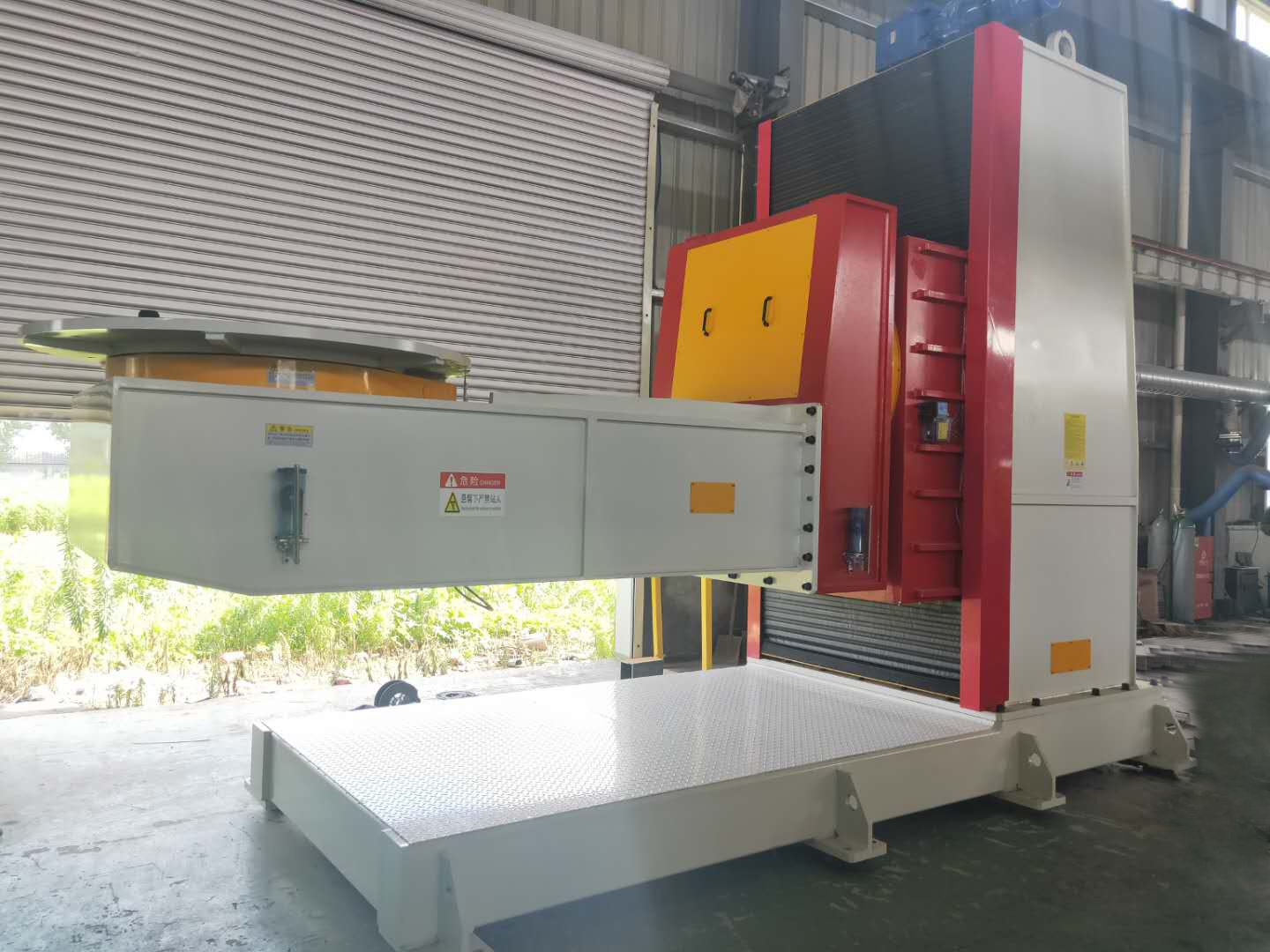

Dual Axis Elevatable L-Type Welding Positioner for Robotic Welding Automation
Dual Axis Elevatable L-Type Welding Positioner for Robotic Welding Automation
Product Overview
The Dual Axis Elevatable L-Type Welding Positioner is designed to improve welding accessibility, process stability, and automation efficiency in robotic welding systems.
By combining dual-axis rotation with a vertical elevating structure, this positioner allows large and heavy workpieces to be positioned at optimal welding angles without manual intervention.
The L-type structural design ensures high rigidity and load-bearing stability, making it suitable for integration with industrial welding robots in automated production lines.
Available Models:
lAUT-DWP-L-3000
lAUT-DWP-L-5000
Key Features
lDual-Axis Motion Control
Provides coordinated rotation and gyration, enabling flexible workpiece orientation during robotic welding.
lVertical Elevating Structure
Adjustable lifting stroke allows the welding position to be optimized for different workpiece sizes and robot working envelopes.
lHigh Load Capacity
Designed to support heavy workpieces up to 3000 kg or 5000 kg, suitable for large structural components.
lStable L-Type Mechanical Design
Enhances overall rigidity and ensures smooth operation under continuous welding conditions.
lRobot-Friendly Integration
Compatible with mainstream industrial welding robots and easy to integrate into automated welding cells.
Technical Specifications

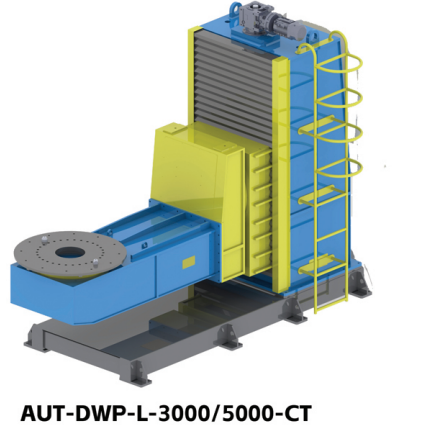

Model: AUT-DWP-L-3000-CT / AUT-DWP-L-5000-CT
Parameter | AUT-DWP-L-3000-CT | AUT-DWP-L-5000-CT |
Rated Payload | 3000 kg (countershaft axis radius ≤ R1500 mm) | 5000 kg (countershaft axis radius ≤ R2000 mm) |
Standard Gyration Radius | R1600 mm | R2100 mm |
Maximum Load Eccentricity | ≤ 750 mm | ≤ 800 mm |
Clamping Height | ≤ 1500 mm (counterweight required beyond this height) | ≤ 1600 mm (counterweight required beyond this height) |
Elevatable Stroke | 0 – 1000 mm | 0 – 1500 mm |
Maximum Rotation Angle (Axis 1) | ±180° | ±180° |
Maximum Gyration Angle (Axis 2) | ±360° | ±360° |
Elevating Speed | 0 – 1000 mm/min | 0 – 1000 mm/min |
Rated Rotation Speed (Axis 1) | 15°/s | 15°/s |
Rated Gyration Speed (Axis 2) | 18°/s | 18°/s |
Repeat Positioning Accuracy | ±0.20 mm (R = 1500 mm) | ±0.25 mm (R = 2000 mm) |
Overall Dimensions (L × W × H) | 3800 × 1400 × 2600 mm | 4800 × 1600 × 3200 mm |
Standard Gyration Disc Diameter (Axis 2) | Ø1500 mm | Ø2000 mm |
Gyration Disc Height | 800 – 1800 mm | 800 – 2300 mm |
Net Weight | Approx. 6500 kg | Approx. 10000 kg |
Typical Applications
lRobotic arc welding of large metal structures
lWelding automation for frames, beams, and heavy assemblies

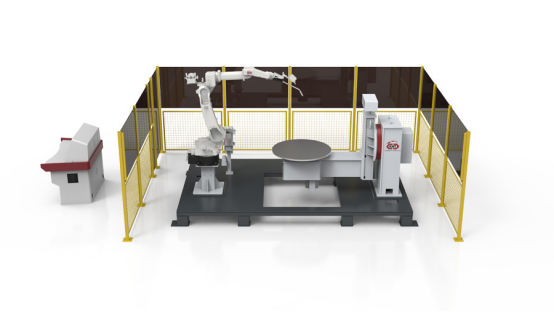

lMulti-station robotic welding production lines
lAutomated welding cells requiring flexible workpiece positioning
Conclusion
The Dual Axis Elevatable L-Type Welding Positioner provides a reliable and efficient solution for robotic welding automation by combining dual-axis motion, vertical height adjustment, and a stable L-type structure. It significantly improves welding accessibility, consistency, and production efficiency for heavy and complex workpieces.
Contact us to learn more about specifications, customization options, and integration solutions.
